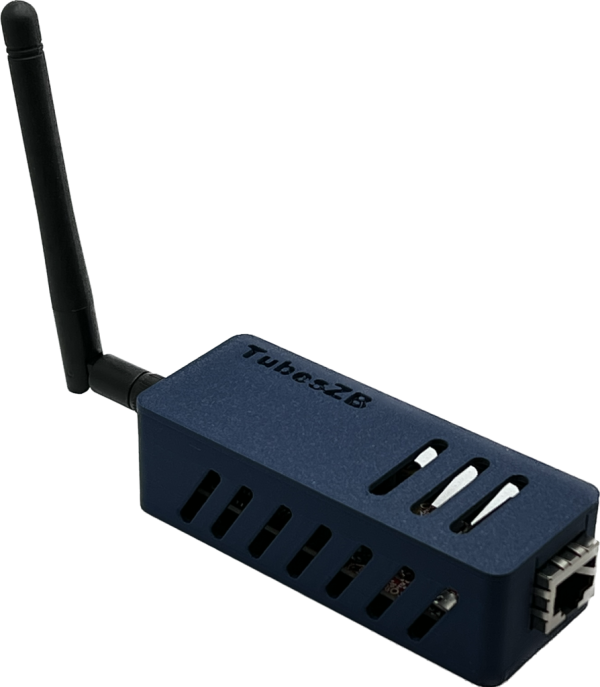

CC2652 P7 Based Zigbee to PoE Coordinator 2023
CC2652 P7 Based Zigbee to PoE Coordinator 2023
CC2652 P7 Based Zigbee to PoE Coordinator 2023
CC2652 P7 Based Zigbee to PoE Coordinator 2023
  1. CC2652 P7 Based Zigbee to PoE Coordinator 2023
  2. CC2652 P7 Based Zigbee to PoE Coordinator 2023
  3. CC2652 P7 Based Zigbee to PoE Coordinator 2023
  4. CC2652 P7 Based Zigbee to PoE Coordinator 2023

CC2652 P7 Based Zigbee to PoE Coordinator 2023

12 reviews|4 answered questions

$72.00

Join Waitlist We will inform you when the product arrives in stock. Please leave your valid email address below.
SKU: N/A Categories: ,

PoE Version

CC2652P7 Version!

Zigbee 3.0 Coordinator based on the CC2652P7. Supported by Zigbee2mqtt, and the ZHA integration in Home Assistant and Tasmota. Ideal for placing your coordinator in a central location. Stable ethernet connection – don’t worry about disconnects! Eliminates the need for USB Passthrough when using HA in a VM environment.

The 2652P7 has double the flash storage and SRAM compared to the CC2652P2

PoE switch or Injector required to power

IEEE 802.3-compliant, including pre-standard (legacy) PoE support. The PoE powering requires at least 37V DC to operate successfully

Documentation

Techical Specs:

  • Powerful 48 MHz ARM® Cortex®-M4F processor
  • 704 KB of in-system programmable flash
  • 256 KB of ROM for protocols and library functions
  • 8 KB of cache SRAM (Alternatively available as general-purpose RAM)
  • 144 KB of ultra-low leakage SRAM. The SRAM is protected by parity to ensure high reliability of operation
  • Output power up to +20 dBm
  • Z-Stack Firmware supports 50 Direct Children, 100 normal routes and 200 source routes

Please Note

The current firmware for the CC2652 P7 is the Z-Stack Firmware Projcet Version 20230507 which does not yet support the changeable TX Power like the P2 FW and is set to 5 dbi. Future FW releases either from TubesZB or the Z-Stack-Firmware project will hopefully add the changeable TX Power.

Weight 4 oz
Case Color

Black, White, Dark Blue, Light Blue
Antenna Color

Black, White

12 reviews for CC2652 P7 Based Zigbee to PoE Coordinator 2023

  1. Timothy H. (verified owner) –

    Bloody awesome. Works great with Home Assistant and my Hue bulbs and other Zigbee devices. To be honest I had kinda forgotten that I have it until I got the e-mail asking if I’d review it, because it just works and never makes a fuss.

  2. Matthew (verified owner) –

    Another great product from TubesZB. These are easy to work with and easier to place.

  3. Paul H. (verified owner) –

    This device has served me flawlessly. It was easy to setup and the support was clear. My server was in another building so I could not use a Zigbee USB Dongle. Simply connecting this to the network turned out to be very convenient.

  4. Michael G. (verified owner) –

    Central location and range is excellent. Working g well with MQTT. Setup and firmware was not trouble free but support was quick and helpful.

  5. Brian F. (verified owner) –

  6. Christopher I. (verified owner) –

    Works great right out of the box

  7. Anonymous (verified owner) –

    Excellent quality

  8. Thomas L. (verified owner) –

    My TubesZB PoE coordinator has probably been the most impactful change to my Zigbee configuration when it comes to reliability and stability. And Byron’s prompt replies have always shown a clear commitment to customer service. You won’t go wrong with these devices.

  9. ARTEM S. (verified owner) –

    Not my first order at TubesZB, but always an impeccable quality! Really like how it also uses esphome and blends into the rest of my setup seamlessly

  10. John Pena (verified owner) –

  11. Paloma K. (verified owner) –

    My zigbee network for my home assistant instance has been running flawlessly on this coordinator for about a month now. Setup was easy and I have had no issues pairing or communicating with a wide variety of devices.

  12. Nicholas N. (verified owner) –

    Handy device. Zero-hassle configuration. Well packed

Only logged in customers who have purchased this product may leave a review.

Q & A

Ask a question
Whats the PoE Power consumption in Watts for the CC2652 P7? Bob asked on May 17, 2024

On my Unifi switch, I see it using 1.59 watts.

 tubeszb answered on May 17, 2024 store manager
(0) (0)
Add an answer
Can I print a modified case using PLA? I originally ordered a black case, but looking at it now, I'd rather have white. Can I reprint this? Jackson asked on January 9, 2024

Absolutely, the stl files for the enclosure are on GitHub: https://github.com/tube0013/tube_gateways/tree/main/models/current

each model has a folder with the stl files.

Let me know if you have any questions @ store@tubeszb.com

 tubeszb answered on January 9, 2024 store manager
(4) (0)
Add an answer
If I have your P2, is there any upgrade path besides junking the old one and replacing it with a new one? Marc asked on November 25, 2023

For the products with 2023 in the name there will be a path to upgrade with kit that includes a usb board/case for using the old module as a router. I am working out whether to make a model for the 2022. For older devices where the zigbee module and esp32 are soldered to a pcb, you could flash the device a router to reuse.

 tubeszb answered on November 29, 2023 store manager
(0) (0)
Add an answer
Can you explain to a newbie of the Home Automation world what advantages the end user gets over the P2 with the P7s increased flash and SRAM? Cheers! Chief_Taco asked on November 4, 2023

The increased flash can allow for a larger firmware in the future. The increased SRAM gives the coordinator more space for larger tables which hold routing information for the mesh network.

 tubeszb answered on November 4, 2023 store manager
(8) (0)
Add an answer
